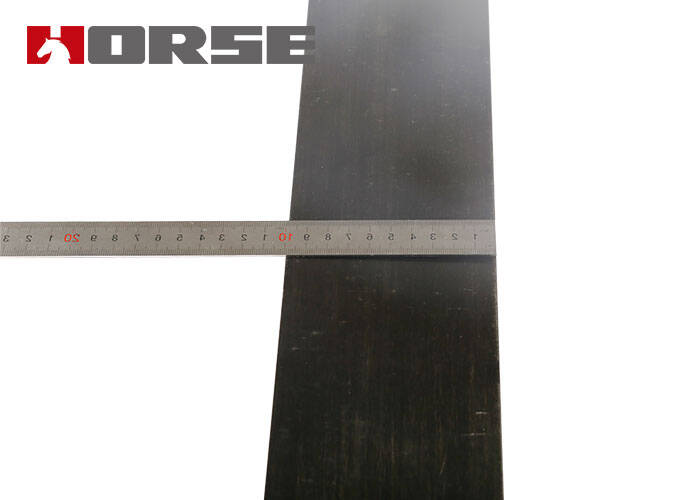

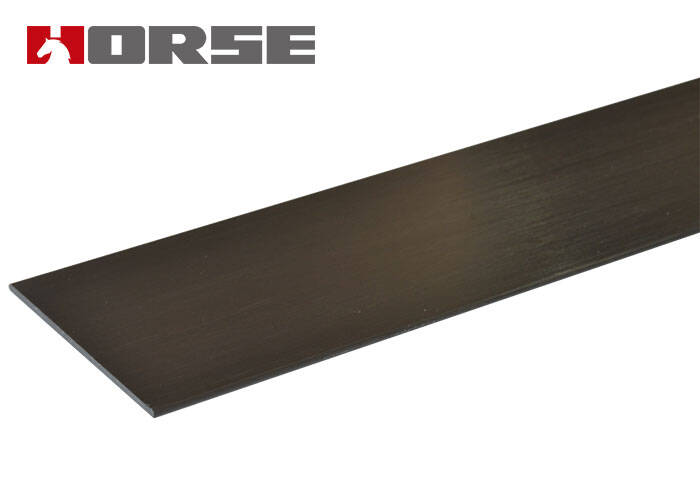

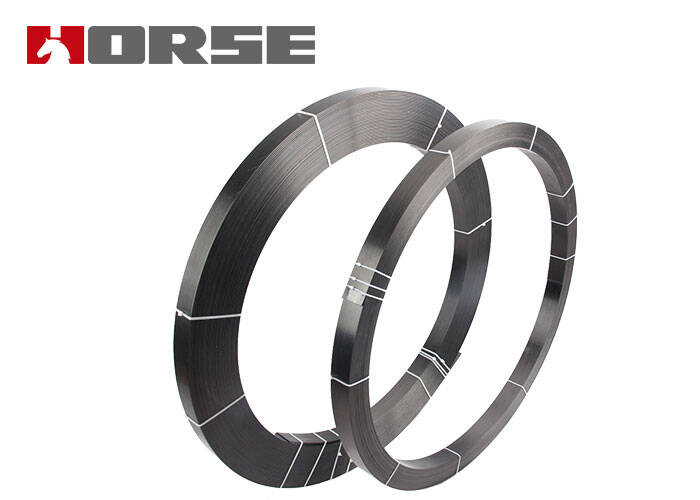

1.2mm And 1.4mm Carbon Fiber Strip/Laminate/Plate
HM-1.2T and HM-1.4T are prefabricated (pultruded) carbon fiber reinforced sheets, used for structural reinforcement of concrete, masonry, metal or wood structures. Glue on the load-bearing components, they are reinforced with epoxy glue (M-120CP).
Horse CFRP Plate's Date Sheet
Item | HM-1.2T Carbon Fiber Plate | HM-1.4T Carbon Fiber Plate | HM-2.0T Carbon Fiber Plate | HM-3.0T Carbon Fiber Plate |
Thickness(mm) | 1.2 | 1.4 | 2.0 | 3.0 |
Length(m) | 100 | 100 | 100 | 100 |
Width(mm) | 50、100 | 50、100 | 50、100 | 50、100 |
Density(g/cm3) | 1.6 |
Base | Carbon fiber reinforced polymer with an epoxy resin matrix | |
Shelf Life | Unlimited (no exposure to direct sunlight) | |
Color | Black carbon fiber plate | |
Tensile Strength | Mean Value | 3100MPa |
Design Value | 2600MPa | |
Modulus Of Elasticity | Mean Value | 165,000MPa |
Design Value | 160,000MPa | |
Elongation at Break | 1.7% | |
Thickness | 1.2mm, 1.4mm, 2.0mm, 3.0mm | |
Temperature Resistance | >300° F(>150℃) | |
Fiber Volumetric Content | >68% | |
Density | 0.058 lbs./in 3 (1.6g/cm3) |
Characteristics of HM-1.2T and HM-1.4T carbon fiber plate
Very high tensile strength
No corrosion
Low dead weight and low installation thickness
Deliverable measurements (no need to overlap or connect)
Easy to apply, also suitable for ceiling work
Excellent fatigue performance
Simple, flexible and economical reinforcement technology
May cross with simple flakes
Very short structure using interrupt
No noise or vibration during installation
Application of HM-1.2T and HM-1.4T carbon fiber strip
Increase in carrying capacity
-Increased payload on beams and bridge decks
-Changes in the use of buildings
-Installation of heavy machinery or equipment in industry
-Stability to vibration and oscillation
The following structural system changes
-Remove supports or walls
-Create an opening (funnel) in the board
-Increased shock resistance
-Design or construction defects
Repair defects in structural elements
-Corrosion and cross-section reduction of steel bars in concrete
-Aging of building materials
-Damage to the structure after fire, earthquake, impact, etc.
Improve conditions of use
-Reduce crack opening
-Reduce deformation
-Reduce stress in steel
-Reduce fatigue effect
