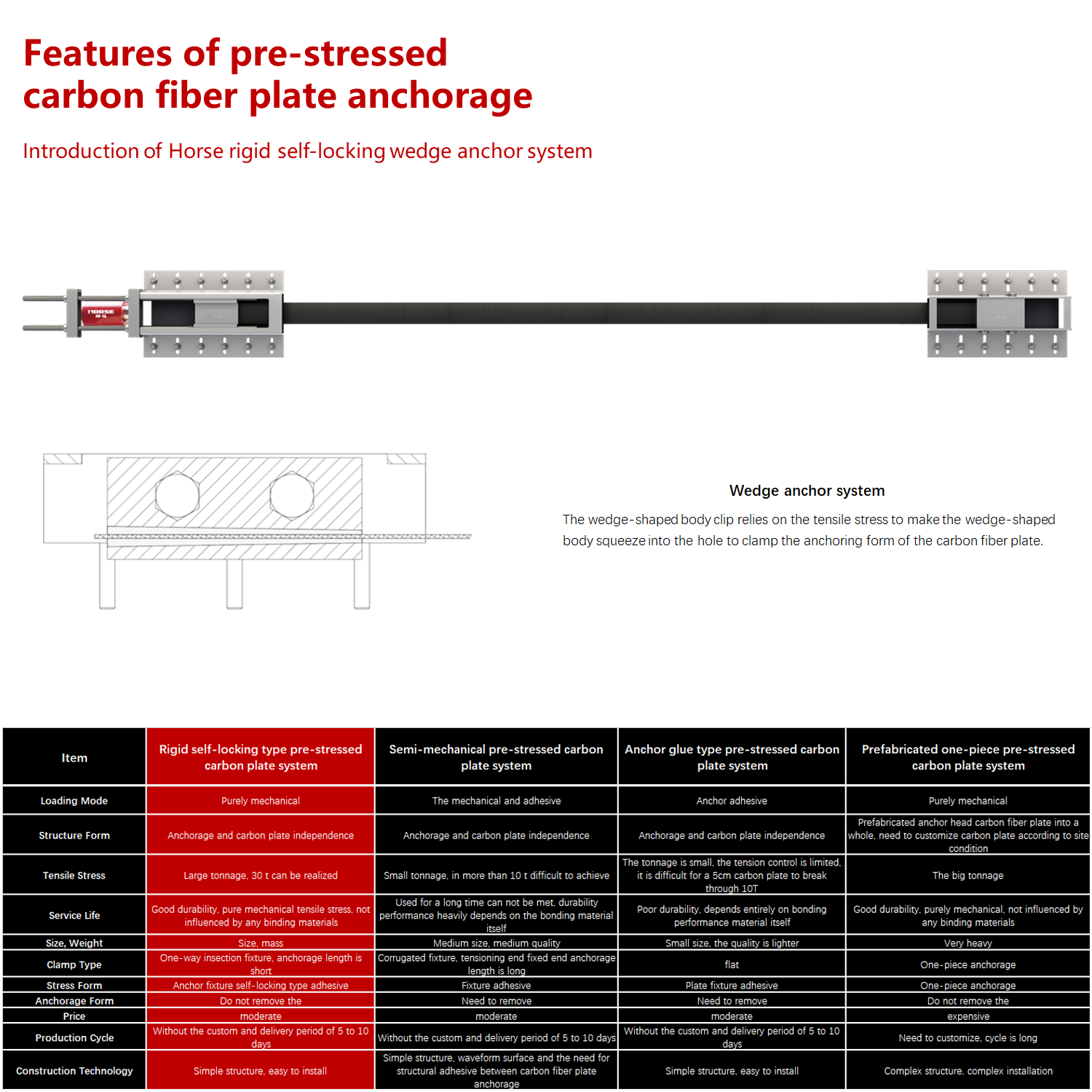

Item | Rigid self-locking type pre-stressed carbon plate system | Semi-mechanical pre-stressed carbon plate system | Anchor glue type pre-stressed carbon plate system | Prefabricated one-piece pre-stressed carbon plate system |
Loading Mode | Purely mechanical | The mechanical and adhesive | Anchor adhesive | Purely mechanical |
Structure Form | Anchorage and carbon plate independence | Anchorage and carbon plate independence | Anchorage and carbon plate independence | Prefabricated anchor head carbon fiber plate into a whole, need to customize carbon plate according to site condition |
Tensile Stress | Large tonnage, 30 t can be realized | Small tonnage, in more than 10 t difficult to achieve | The tonnage is small, the tension control is limited, it is difficult for a 5cm carbon plate to break through 10T | The big tonnage |
Service Life | Good durability, pure mechanical tensile stress, not influenced by any binding materials | Used for a long time can not be met, durability performance heavily depends on the bonding material itself | Poor durability, depends entirely on bonding performance material itself | Good durability, purely mechanical, not influenced by any binding materials |
Size, Weight | Size, mass | Medium size, medium quality | Small size, the quality is lighter | Very heavy |
Clamp Type | One-way insection fixture, anchorage length is short | Corrugated fixture, tensioning end fixed end anchorage length is long | flat | One-piece anchorage |
Stress Form | Anchor fixture self-locking type adhesive | Fixture adhesive | Plate fixture adhesive | One-piece anchorage |
Anchorage Form | Do not remove the | Need to remove | Need to remove | Do not remove the |
Price | moderate | moderate | moderate | expensive |
Production Cycle | Without the custom and delivery period of 5 to 10 days | Without the custom and delivery period of 5 to 10 days | Without the custom and delivery period of 5 to 10 days | Need to customize, cycle is long |
Construction Technology | Simple structure, easy to install | Simple structure, waveform surface and the need for structural adhesive between carbon fiber plate anchorage | Simple structure, easy to install | Complex structure, complex installation |
