Recommended Hole Sizes and Depth for Rebars | Horse Construction

hole sizes and depth for reinforcing rebars

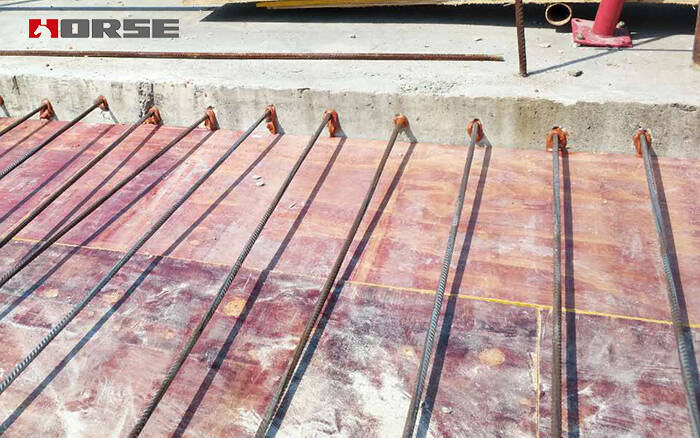

Post-installed Rebar Connections with Anchoring Adhesive.jpg



Every day Horse receive inquiries asking what is the hole size and depth for xx mm steel bar.  Today we will write an article to introduce it, and the calculation of anchoring adhesive.


According to the construction code, we have sorted out the form


The table of using gule quantities of HM-500 epoxy anchor adhesive



the steel

bar diameter

pore

size

pore

depth

the injecting

glue volume

theoretic

number

note
mmmmmmml(2/3v)piece
8
12806.0364.6710d
8121209.0443.1415d
81216012.0632.3320d
101410010.2638.0110d
101415015.0825.8615d
101420020.5219.0120d
121612016.0924.2310d
121618024.1216.1615d
121624032.1812.1120d
141814023.7316.4310d
141821035.6110.9515d
141828047.46832120d
162216040.529.6210d
162224060.796.4115d
162232081.044.8120d
182518058.876.6210d
182527088.314.4115d
1825360117.743.3120d
202820082.064.7510d
2028300123.093.1615d
2028400164.122.3720d
2230220103.623.7610d
2230330155.432.515d
2230440207.241.8820d
2532250133.972.9110d
2532375200.961.9415d
2532500267.951.4520d



How to calculate the amount of epoxy anchoring adhesive?


The formula for the amount of glue: the amount of planting glue W=Π×r2×h×2/3

Where W represents the amount of glue used (ML); r-drilling radius (cm); h-drilling depth (cm)

For example: ∮20 steel bar, drilling diameter 24MM, depth of 15D is 30CM,

Amount of glue for planting bars (ML)=3.14×(1.2CM×1.2CM)×2/3×30CM



The formula is too complicated, so Horse developed a tool that can calculate the amount of glue.


Just enter a few data, you can easily get the amount of glue


https://www.horseen.com/calculator/calculator.html

tool

calculator of anchoring adhesive
