Horse Construction, teknik destekler, dokümantasyon destekleri, ürün destekleri, yazılım destekleri, proje destekleri ile tam bir yapısal güçlendirme malzemesi yelpazesi sunar.

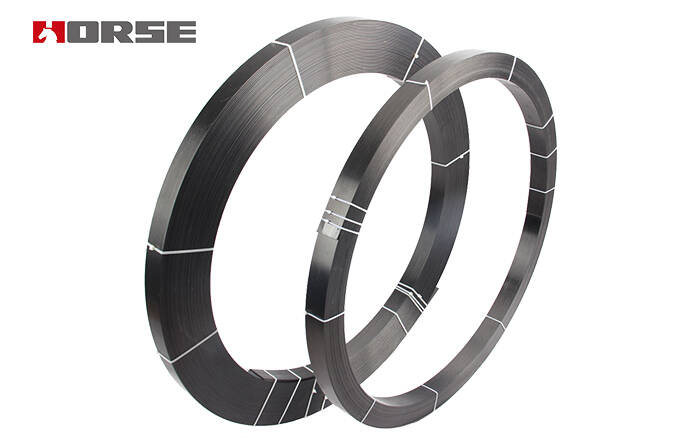

Horse Construction is the largest and most professional manufacturer and supplier of carbon fiber laminate in China.
Horse Construction has two carbon fiber laminate production lines, used on German Dornier looms which is the world's best weaving machine. Daily output of 2,000 meters of carbon fiber laminate and an annual output of 600,000 meters carbon fiber laminate.
Horse Construction's carbon fiber laminate have incredible performance and value, including high strength, light weight, corrosion resistance, excellent impact resistance, low cost and high throughput manufacturing.
Horse can produce carbon fiber laminate of different specifications for various structural strengthening projects. Our carbon fiber laminates have competitive prices, excellent impact strength and high performance. Through our ISO 9001 certified manufacturing and quality system and ASTM report, we have a relatively high product quality.
Horse Construction HM Carbon Fiber Laminate Specification
Carbon fiber reinforced polymer with an epoxy resin matrix
Shelf Life
Unlimited (no exposure to direct sunlight)
Color
Black carbon fiber laminate
Tensile Strength
Mean Value
3100MPa
Design Value
2600MPa
Modulus Of Elasticity
Mean Value
165,000MPa
Design Value
160,000MPa
Elongation at Break
1.7%
Thickness
1.2mm, 1.4mm, 2.0mm, 3.0mm
Temperature Resistance
＞300° F(＞150℃）
Fiber Volumetric Content
＞68%
Density
0.058 lbs./in 3 (1.6g/cm3)
What Makes Horse Carbon Fiber Laminate Unique?
HM carbon fiber laminate are manufactured under very high quality control, in dust free and environmentally controlled facilities, where temperature and humidity are well controlled. As a result, Horse Construction products easily meet very high standards in both domestic and international markets.
Use of automatic temperature-controlled heating system during manufacturing results in maintaining a uniform pultrusion process, and therefore producing CFRP laminate that have reliable stable pulling strength.
Autonomous large-ton hydraulic traction system fully guarantees the precise control of tension and line speed, ensuring the flatness and straightness of the carbon fiber laminate without any internal residual stress.
Self-developed carbon fiber constant creel makes each carbon fiber yarn smooth before dipping into the epoxy bath, no scratches after the glue application, and the fibers are distributed evenly, to ensure the integral curing of CFRP laminate .
Bize Ulaşın
Horse Construction Önerilen Ürünler
Burada ihtiyacınız olan her şeyi bulabilirsiniz. Bu ürünleri denemeye güvenin, sonra büyük bir fark göreceksiniz.
At karbon fiber takviyeli polimer (CFRP) laminat, HM-120CP epoksi ile dışarıdan takviye olarak yapıya bağlanan önceden kürlenmiş kompozit laminatlardır.
Öngerilmeli CFRP şerit sistemi (Ardından Gerilmeli CFRP sistemi), köprüler, binalar ve çelik yapı güçlendirmeleri için özel olarak tasarlanmış ankraj elemanları ve karbon fiber şeritleri içerir.
