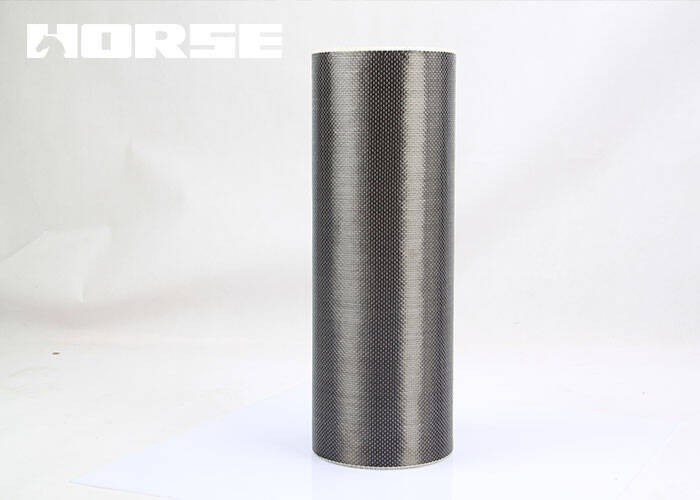

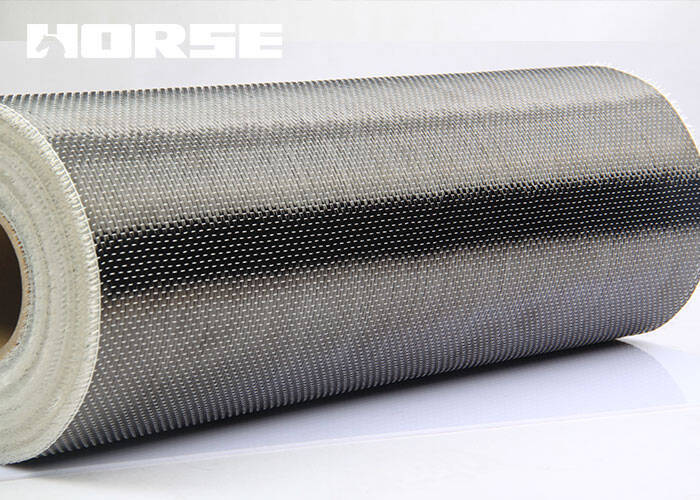

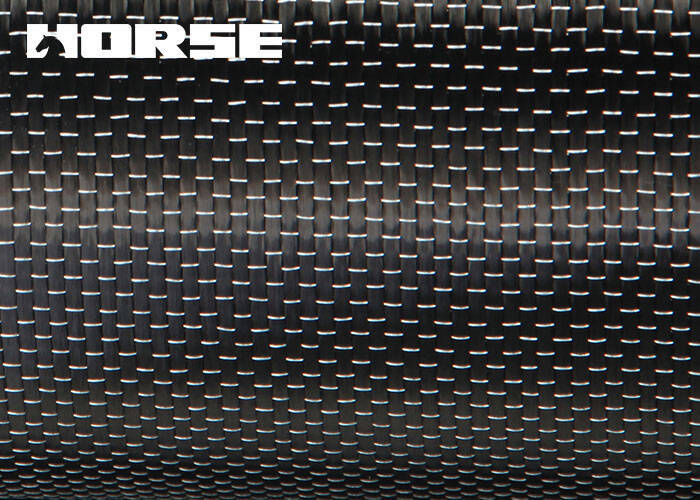

Unidirectional Carbon Fiber Fabric 600g

Brand Name: Horse Construction

Product Type: Carbon Fiber Fabric

Style: Unidirectional

Weight: 600g

Color: Black

Thickness: 0.333mm

Length: 100m

Place of Origin: Shanghai China (Mainland)

Width Range: 10~1500mm

Tow Size: 24k

Application: Best for Structural Strengthening

Feature: Light Weight, High Strength

Supply Type: Make-to-Order

Horse 24K unidirectional carbon fiber fabric is a unidirectional carbon fiber reinforced material made of imported carbon fiber yarn. The thickness of Horse unidirectional carbon fiber fabric 600g is 0.333mm, and has various widths: 100mm, 150mm, 200mm, 250mm, 300mm, 500mm and other special width requirements. It is widely used for tensile and seismic reinforcement of structural components. When used with HM-180C3P carbon fiber impregnating adhesive, it can be considered as a carbon fiber composite material, which is suitable for the reinforcement of concrete and wood structures. Unidirection carbon fiber fabric product can effectively improve the load-bearing capacity, seismic performance and durability of the structure.

The application of carbon fiber composite materials in earthquake resistance and reinforcement of civil structures is a new trend in current construction methods. Compared with traditional steel plate reinforced materials, carbon fiber reinforced materials can improve the flexural strength and toughness of the structure, and can effectively increase the seismic resistance and extend the seismic life. The light weight will not add significant load to the structure, and it has good fatigue resistance and long shock resistance. Horse carbon fiber seismic reinforced unidirectional woven fabric 600g, so it is woven with 24K carbon fiber, the fiber modulus is 36Msi, the strength is 700Ksi or higher, and it has good compatibility with reinforced epoxy resin. The high strength of composite materials can meet the requirements of various countries to strengthen returns.

Carbon fiber fabric is a dry fabric constructed of very high strength, aerospace grade carbon fibers.

FEATURE

• Flexible

• High strength

• High modulus

• Easy to install

• Long shelf life

• Light self weight

• High toughness

• Anti high temperature

• Environmental-friendly

• Unidirectional carbon fiber fabric used for shear strengthening, confinement strengthening, flexural strengthening

BENEFIT

• Easy installation

• Corrosion resistance

• Short construction period

• No maintenance required

• Light weight, no influence to original structure

• Low cost, cost effective compared with other methods
